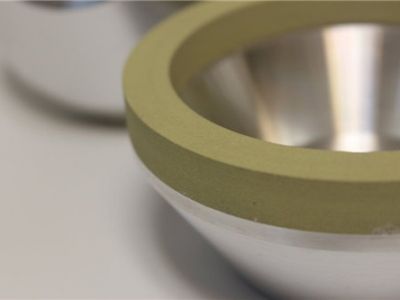

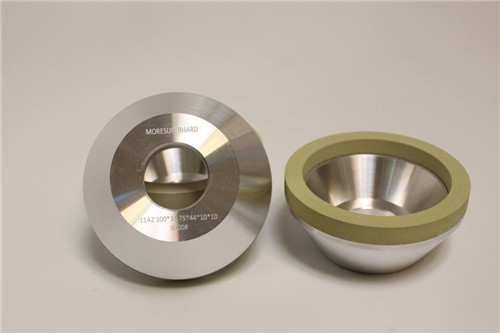

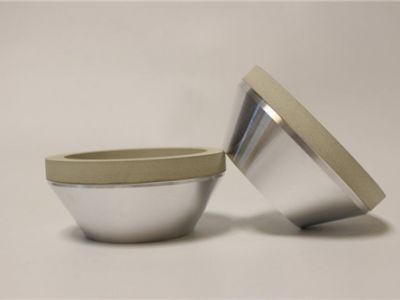

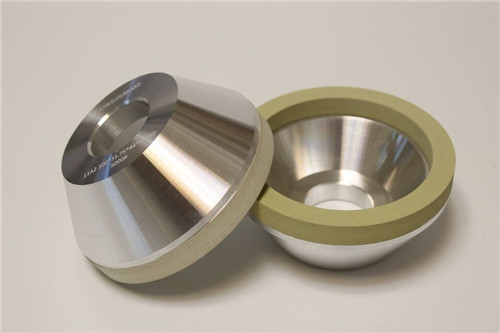

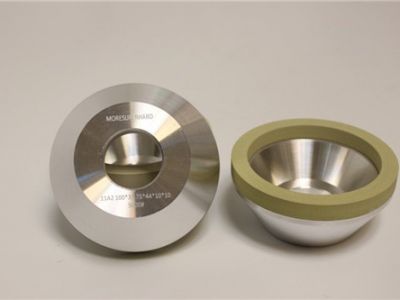

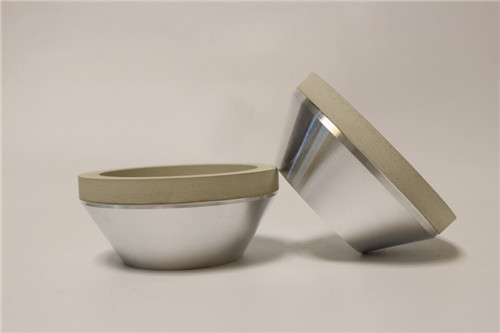

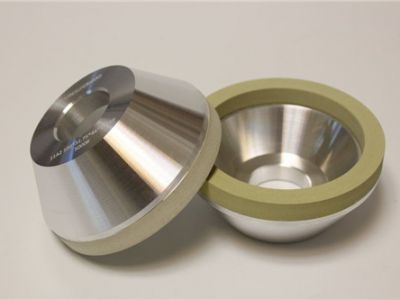

Applications Of Vitrified Diamond Wheel For Pcd

Especially for PCD/PCBN tools’rough,medium,semi- finish and finish grinding, regrind,sharpening

Advantages Of Vitrified Diamond Grinding Wheel For Pcd

* Precision control of geometric tolerance

* Extremely long lifetime through high adhesion strength of the diamond grain

* Good self-sharpening

* Superior insert edge quality

* High cutting ability with profile retention

Specifications Of Vitrified Diamond Wheel For Pcd

Type

D(mm)

T(mm)

H(mm)

W(mm)

X(mm)

11A2

100

40

32 40

3 5 10 20

10

125

40

32 40

3 5 10

10

150

40

32 40

3 5 10 15 20

10

Grit: 325/400 W40(500#) W28(600#) W20(800#) W10(1500#) W7(2000) W5(3000#) W3.5(4000#) 6000#...

Grain Size Selection Of Vitrified Diamond Wheel For Pcd

Grain Size

Machining Type

Application

W40(400-500#,D35)W28(600-700#,D20)

Rough

Regrinding a blade edge profile and sharpening of much worn inserts

W20(800-1000#,D20)

Universal

Standard grain size also can get a high sharpening efficiency, good quality surfaces

W10 (1500#, D15A)    W7(2000#,D15B)

Finish

Finishing grinding - getting a very good quality of machined surfaces

W5 (3000#, D7) W3.5 (4000#,D3)

Super Finish

Super finish grinding - getting a brilliant quality of machined surfaces

Inquiry

You are our number one priority. We have tools available to assist in your product inquiries and general questions.

  • How to grind PCD cutting tool?
    22 April 2022

    How to grind PCD cutting tool?

    Grinding wheel should be preferred to choose vitrified diamond grinding wheel,intensity of vitrified diamond grinding wheel is moderate, self-excitation and internal porosity is more, is good for chip removal and cooling, in the process of grinding, prone to micro crack update self-sharpening abrasive, and to improve the accuracy and efficiency of machining surface, but should pay attention to the choice of particle size, coarse grinding wheel can lead to larger collapse on the lack of, as the particle size, The cutting edge quality tends to get better.

  • How to grind MCD cutting tools?
    30 March 2022

    How to grind MCD cutting tools?

    This is the case of our customer want to grind MCD cutting tools, he purchase Moresuperhard W20 and W10 grit vitrified diamond grinding wheel. First steep using 800#, second steep using 1500#,finally using 10000# for finishing. The customer wants the final chipping control to be 0.002 ,and have a feedback that Moresuperhard W20 vitrified diamond grinding wheel is the best W20 he has used. Moresuperhard W10 vitrified diamond grinding wheel chipping can reach 0.01-0.013(200 times), can meet the requirements of semi-fine grinding, grinding force is also very good.
