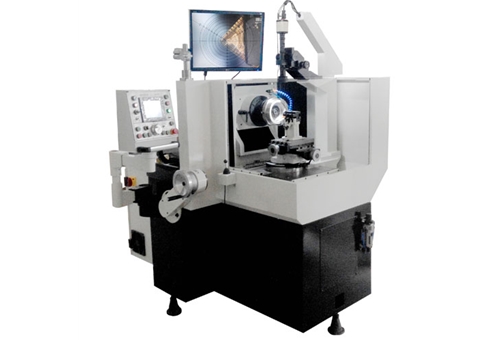

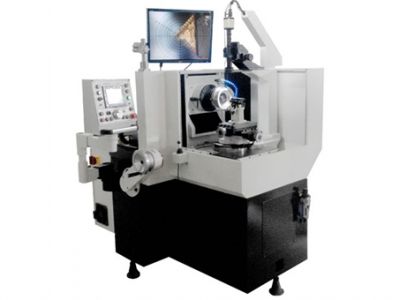

I. Features:

1. Mechanical Structure: The base of machine is made of solid casting with high quality. It can meet grinding any requirements of hard material.

2. Grinding Spindle: With high precision and variable frequency, the spindle power is 3Kw, max speed is 3000r/min. The inner of spindle is cooled by recycling water. The radial run-out is 0.002mm and axial run-out is 0.003mm.

3. The feed slider is driven by pressure air, ensuring high production efficiency and good finish on cutting edges.

4. Wheel Oscillation: The grinding wheel oscillation is controlled by PLC program and move very smoothly. Oscillation length, position and frequency are adjustable on the panel;

5. CCD Measurement: Tool CCD image can be displayed, observed and measured on line with help of hairline.

6. Declination Lock: The grinding spindle declines along the circular guide smoothly and radial lock can be made, greatly enhancing the rigidity of the equipment. After declination, the center line of the grinding wheel keeps the same height due to special mechanical design，so coarse and fine grinding can be made without declination adjustment.

II.   Technical Breakthrough

1. No vertical axis: vertical shaft lifting is not necessary because of height adjusting fixture on the workbench, greatly enhances the stability and rigid of the machine.

2. Tool automatic rotation: Once input the angle, rotation speed and hold time on the LCD control panel, the tool can rotate automatically to form radius and two straight cutting edges. If you hope to control the process totally, a switch button press can make it a total manual machine like bt-150. The machine only needs one hand to operate. The keen attention controls the most critical factor on the tool, the efficiency, the finish and the tolerance.

III. Main Technical Parameters

Note:
1. In order to facilitate users to operate the machine, we also provide the instruction and parts manual, not including quick-wear part;

2. One-year limited warranty;

3. Delivery time: 45 work days after we received the deposit, if any special requirement can be consulted;

4. Payment terms:  T/T in advance

5. Package: wooden case;

6. Offer Validity: 90days.
