PCD Grinding Machine

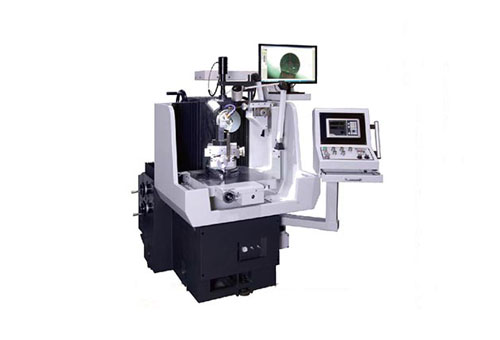

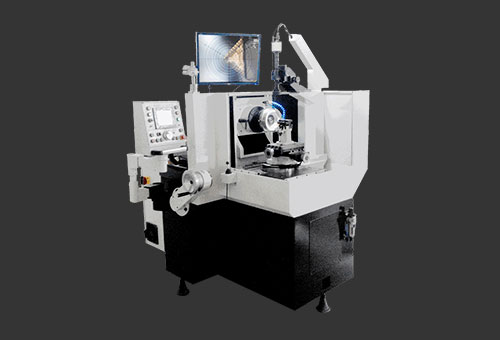

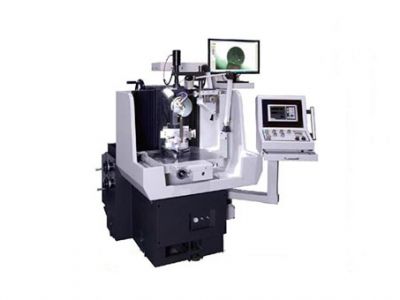

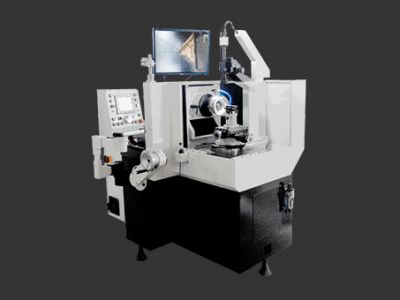

BT-150G PCD & CBN Tool Grinders is reliable in performance and easy to be operated. It requests very little manual skill and can grind PCD, PCBN and CVD insert; it can also grind carbide and HSS non-standard blades, standard or non-standard welding lathe tool, machine blades, boring cutter, grooving cutter and other various tools.
+86 15617330220
BT-150G PCD & CBN Tool Grinders is reliable in performance and easy to be operated. It requests very little manual skill and can grind PCD, PCBN and CVD insert; it can also grind carbide and HSS non-standard blades, standard or non-standard welding lathe tool, machine blades, boring cutter, grooving cutter and other various tools.
Main Technical Parameters:
Spindle and Grinding Wheel
|
Diameter of Grinding wheel
|
150mm
|
Power of Spindle
|
3KW
|
RPM of Grinding Spindle
|
0~4,000RPM
|
Changeable Clearance Angle
|
-5°~25°
|
Grinding wheel center hole
|
40mm
|
Grinding Wheel Oscillation System(X Axis)
|
PLC Numerical Controlled Oscillation and Control on the Panel
|
Max. Oscillation Range
|
30mm
|
Max. Oscillation Frequency
|
60times/minute
|
Oscillation Position is Controlled by Screw and Starting
|
From Center, Left, Right
|
CCD Monitoring System
|
Max Magnification of Optical Microscope
|
4 times
|
Magnification of CCD Measuring System
|
100times
|
Displayer
|
15’’
|
CCD Image Resolution
|
1280*1024
|
Feed and Rotation System
|
Quick Approach Withdraw and Precisely Feeding
|
3mm/turn;0.5mm/turn
|
Rotation Transverse(B Axis) Driven by Hand
|
360°
|
Linear Encoder Resolution (X Axis and Y Axis)
|
0.001mm
|
Rotation Encoder Resolution (B Axis)
|
0.010°
|
Power Supply and Dimensions
|
Coolant Tank with Filter Paper
|
About 80L
|
Main Power Supply
|
6 Kw
|
Voltage Requested
|
380V/Three phase /50Hz
|
Overall Dimensions L╳W╳H
|
1450 X 1500 X 1700mm
|
Weight With Coolant Tank
|
1500 Kg
|
Features :
1. Mechanical Structure: The base of machine is made of solid casting with high quality. It can meet grinding requirements of any hard material.
2. Grinding Spindle: With high precision and variable frequency, the direct-drive spindle power is 3Kw; max speed is 4000r/min. The inner of spindle is cooled by recycling water. The radial run-out is 0.003mm and axial run-out is 0.0025mm.
3. Feed Wheel: The feed wheel includes rapid feed and precision feed. The feed rate is 0.5mm/turns and feed 3mm/turn respectively.
