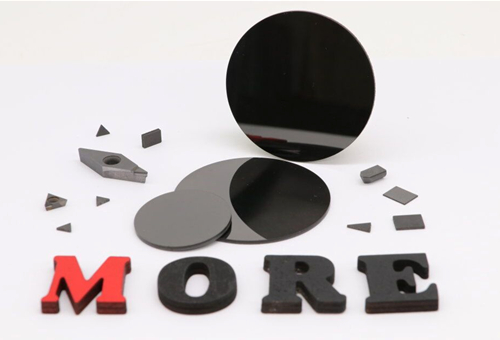

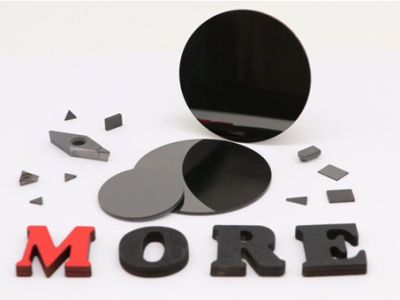

Size: 62mm pcd blanks, 58mm pcd blanks, 51mm pcd blanks, 48mm pcd blanks, etc
Type: Triangle, Cylindrical, Square, Flake, etc
Products and applications
2.PCD tools (1. Woodworking tools 2. Metalworking tools)
PCD standard welding blade, PCD milling cutter, PCD face milling cutter, PCD woodworking cutter, PCD integral blade
More Super Hard PCD cutting tool blanks in the size of 5μm、10μm and 25μm can be used in super-fine processing and fine. They are applicable to the processing of non-metal materials as wood, ceramic,intensified planks and non-farrous material as copper and aluminum. We can supply all kinds of PCD cutting tool blanks that diameter can reach 62mm
Application
1. Woodworking industry
Moresuperhard PCD cutting tool blanks fine micron series are suitable for processing solid wood, bamboo, plastic; middle grain sizes are good for universal applications for chipboard, wood composite, MDF, laminate flooring, etc.; The mixed microns and rough micron series are mainly for HPL veneer floor, PVC flooring board, MDF/HDF, and reinforced particle panels.
Many grades of Moresuperhard PCD cutting tool blanks are good for tooling various materials in automobile, aerospace industries.
Our sub-micron PCD is mainly for low Si content alloys to obtain perfect processing surface. The fine micron PCD series are for processing low Si content Al alloys, copper & copper alloys.The middle microns are mainly for <14% Si/Al alloys work pieces. The mixed microns and rough microns are good for tooling >14% Si/Al alloys work pieces, cast iron, carbide, CFRP, titanium and metal matrix composites, etc.
Moresuperhard PCD products in medium fine grain sizes are also applicable for processing mobile phone frame, key, electronic circuit boards, etc., which require better surface finish.
4. Building materials industry
Moresuperhard PCD product in medium coarse grain sizes are also widely used for processing different materials in building & constructing industry, such as graphite, stone, carbon fiber composite materials, etc., which require higher wear resistance tools.
SPECIFICATION
Grade |
Average diamond
grain siz be (μm) |
Diameter
(mm) |
Standard overall
thickness
(mm) |
Average PCD
thickness
(mm) |
PCD surface |
MORE001 |
1 |
58 |
1.6, 2.0, 3.2 |
0.5 |
Polished or
unpolished |
MORE002 |
2 |
58 |
1.6, 2.0, 3.2 |
0.5 |
Polished or
unpolished |
MORE005 |
5 |
58 |
1.6, 2.0, 3.2 |
0.5 |
Polished or
unpolished |
MORE010 |
10 |
58 |
1.6, 2.0, 3.2 |
0.5 |
Polished or
unpolished |
MOAO010 |
10 |
58 |
1.6, 2.0, 3.2 |
0.5 |
Polished or
unpolished |
MORE025 |
25 |
58 |
1.6, 2.0, 3.2 |
0.5 |
Polished or
unpolished |
MOAO025 |
25 |
58 |
1.6, 2.0, 3.2 |
0.5 |
Polished or
unpolished |
MORE253 |
25+3 |
58 |
1.6, 2.0, 3.2 |
0.5 |
Polished or
unpolished |
MORE302 |
30+2 |
58 |
1.6, 2.0, 3.2 |
0.5 |
Polished or
unpolished |
Application Cases Of PCD Cutting Tool Blanks
58mm diameter PCD wafers Have Sent To American Clients
Product name | PCD wafer fine grade PCD |
Size | 58 mm diameter 2 mm thickness PCD blanks |
Applicable workpiece | woodworking tools ( brazing the PCD to tool body then wire EDM again for final profile ) |
