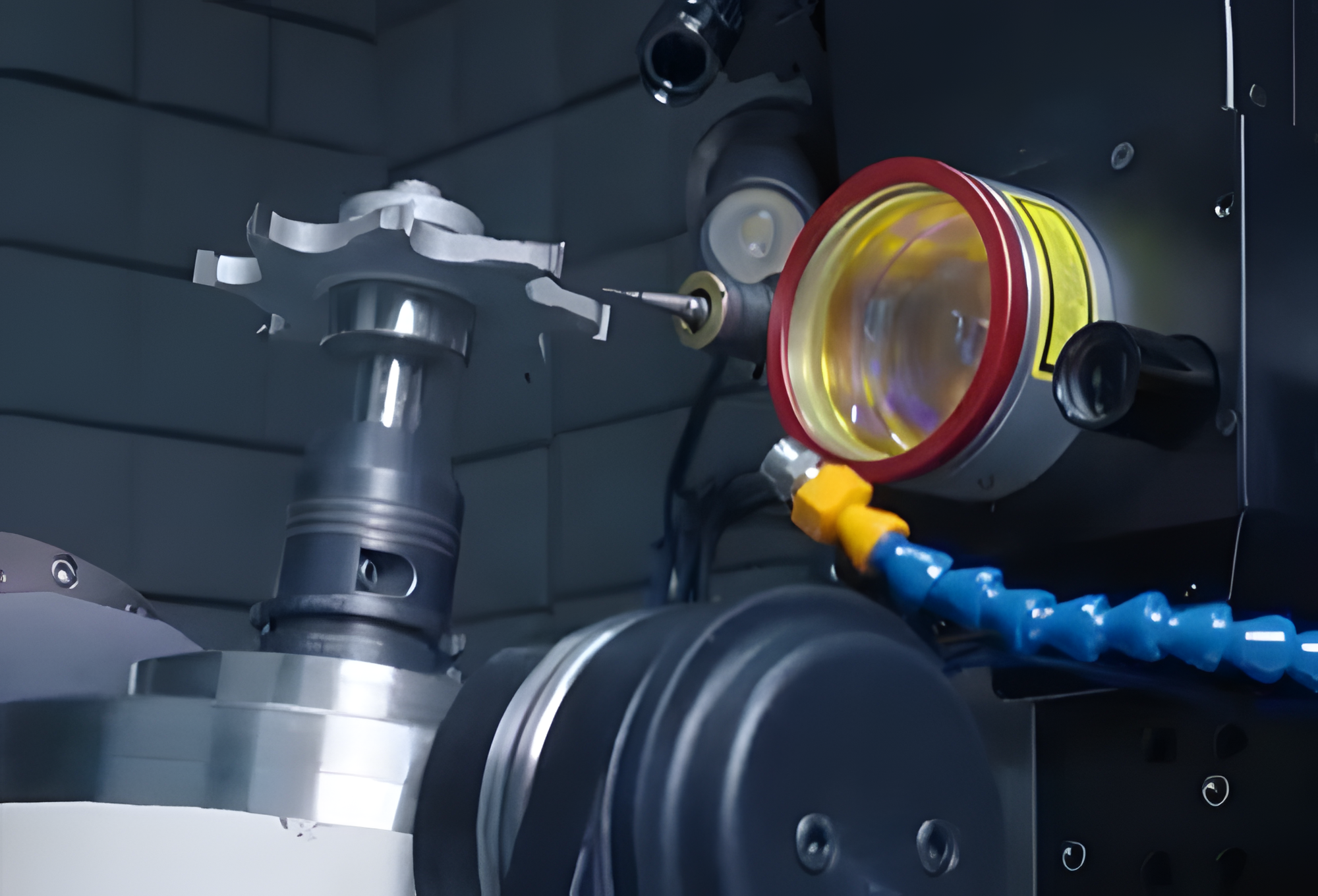

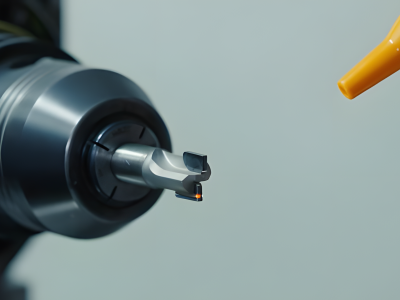

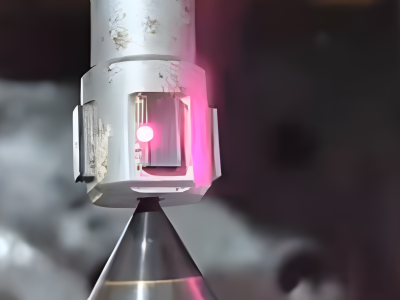

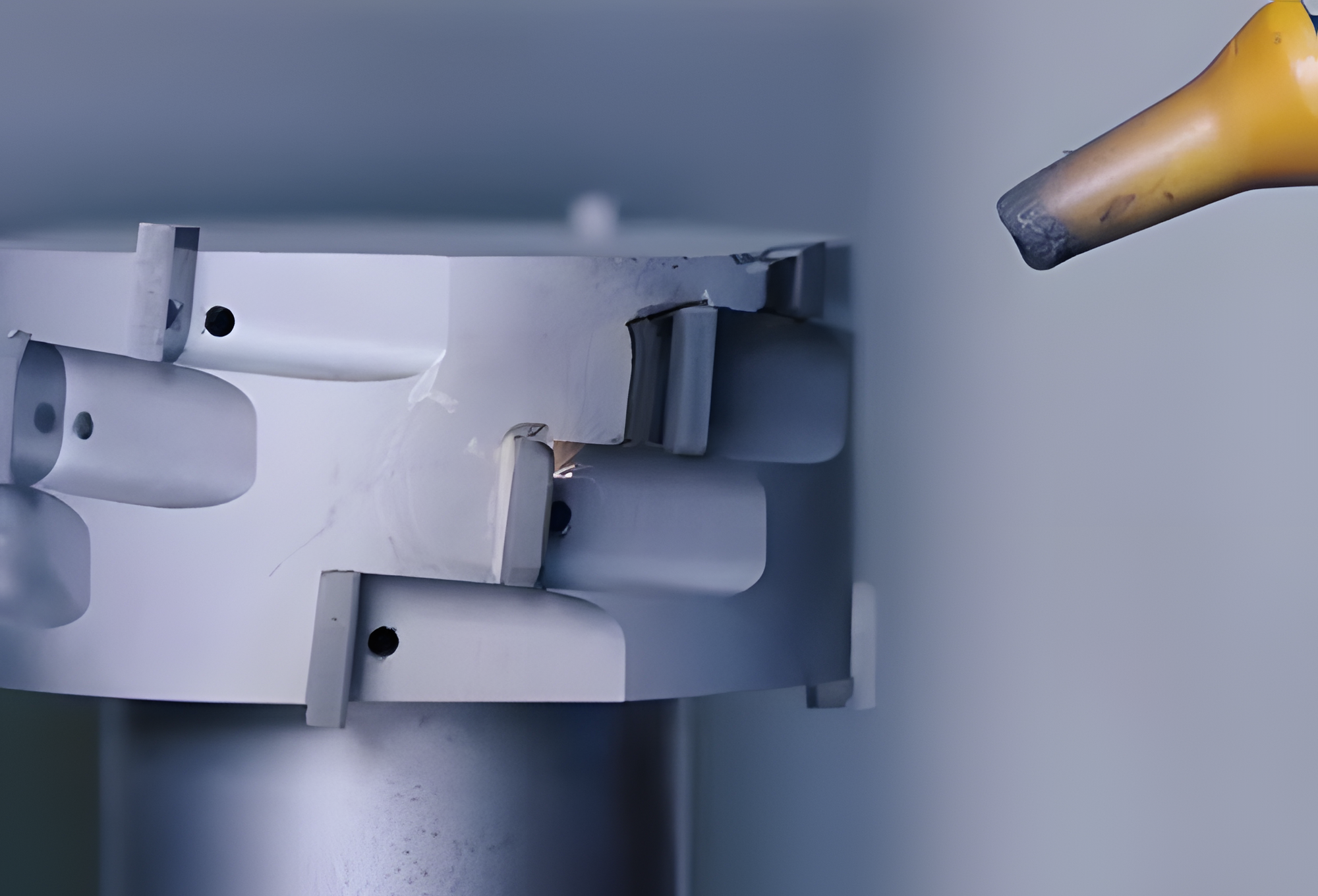

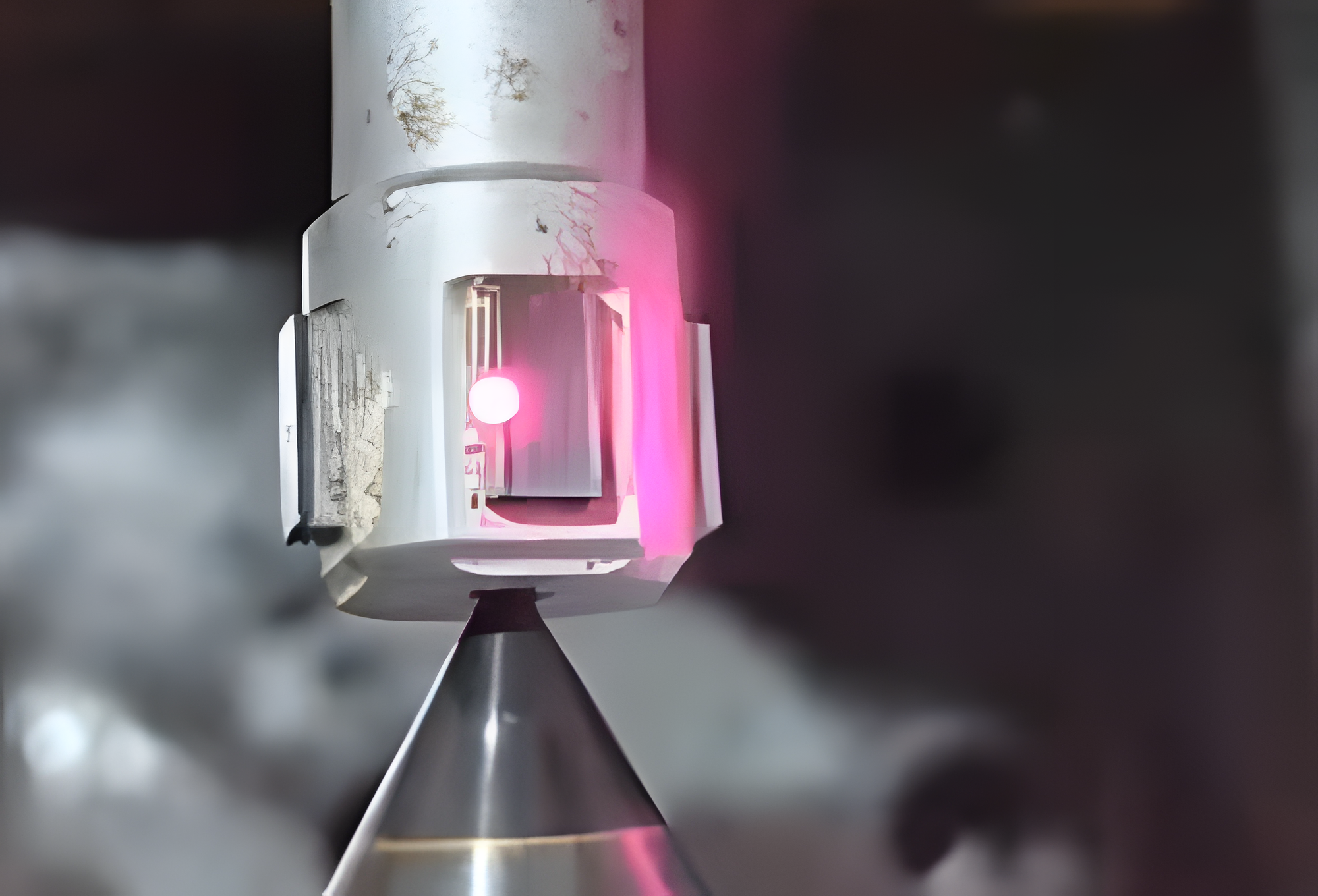

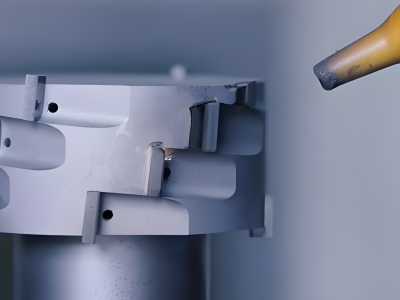

Applications:Laser grinding different cutting tools
Machinable materials:PCD,CBN,MCD,CVD,Carbide ect.
Features:The rough and fine machining of the workpiece can be completed in one clamping, achieving high-speed and high-precision machining of complex tools.

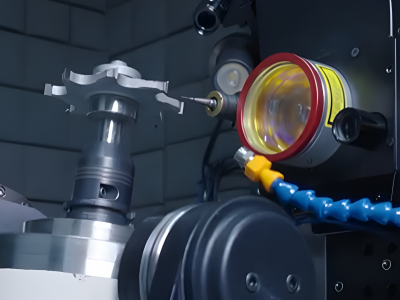

Equipped with CCD positioning camera and high-precision probe
Why Choose Moresuperhard's Laser Ablation Machine?
1. The machine tool is made of natural marble, with stable structure, good rigidity, high precision and strong reliability
2. The linear axis is driven by a linear motor, the rotary axis is driven by a torque motor, and the full closed-loop grating ruler is detected, with high positioning accuracy and fast dynamic response
3. Regardless of the type of tool, spiral, profile, step, multi-blade, etc., the tool can be clamped once, and rough and fine integrated processing can be achieved
4. Friendly human-computer interaction, simple and intelligent operation
5. The efficiency is more than 20 times that of traditional grinding machines, with a roughness less than 0.1μm and a profile less than 10μm
Applications of 5-Axis Laser Grinding Machine

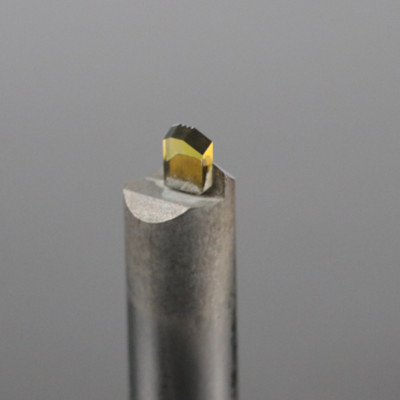

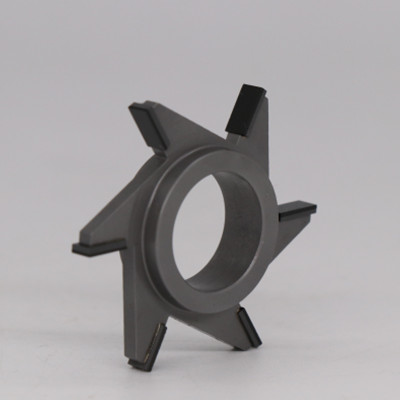

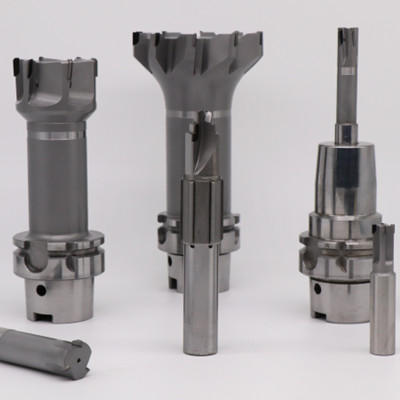

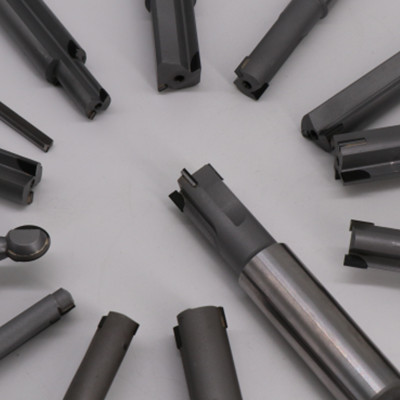

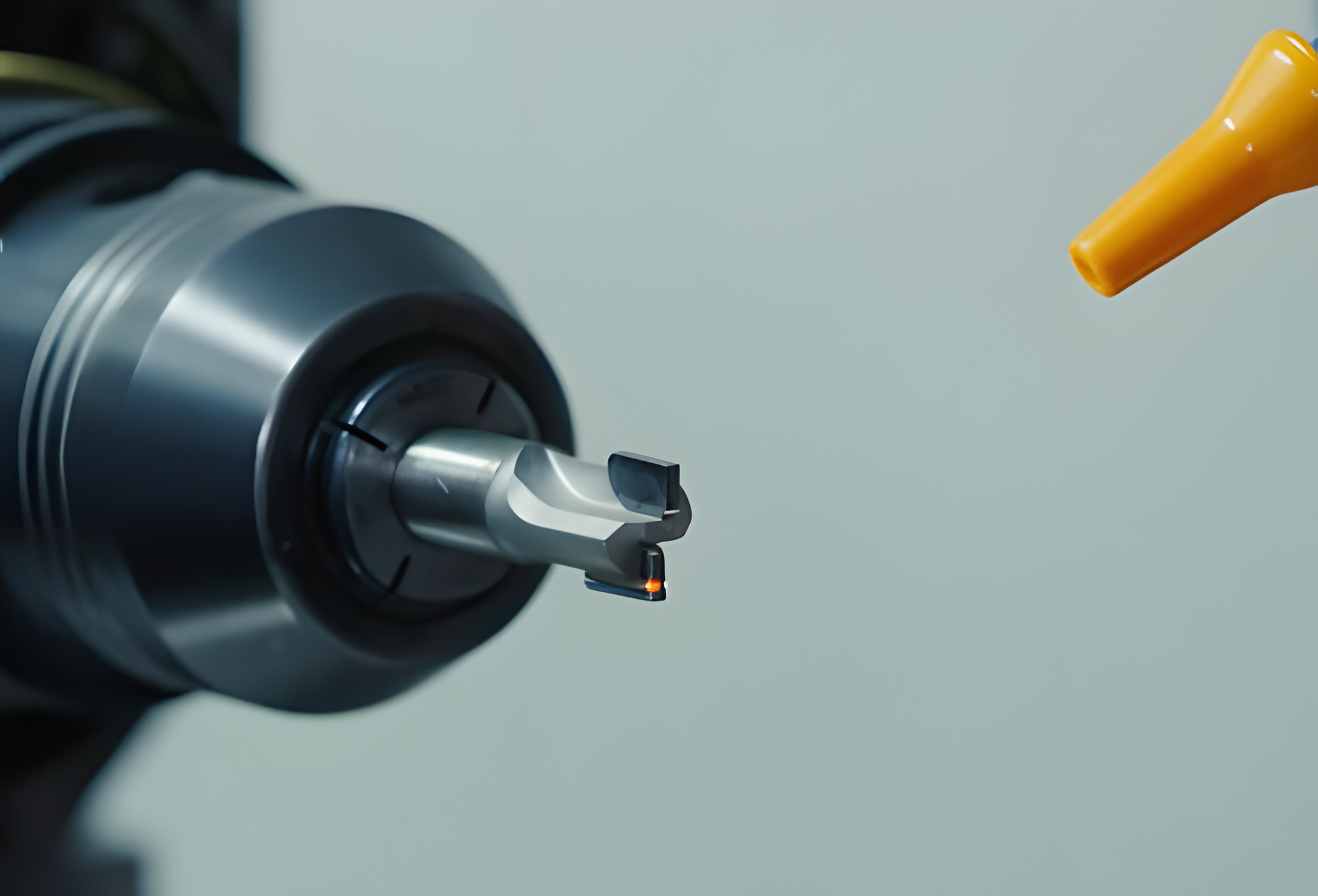

Moresuperhard five-axis laser grinder can process PCD tools in 3C industry, PCD tools in automobile industry, PCD reamers, milling cutters, PCD forming tools, PCD woodworking tools. Single crystal diamond tools, MCD arc tools, diamond turning tools, etc.

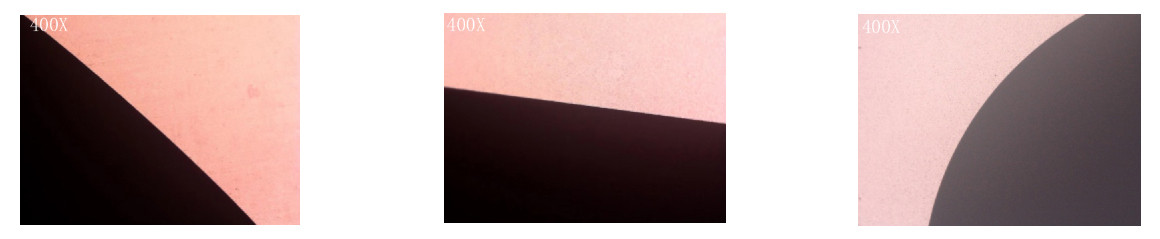

Cutting Edge detection under microscope
No chipping, no burning, high finish, good edge quality
5-Axis Laser Grinding Machine Parements
| Machining stroke | X*Y*Z 500*350*600 |
| B/C turntable travel | B±135°/C360° |
| Laser Type | Fiber optic laser/200W |
| Machining Method | Five-axis linkage |
| Linear axis accuracy | Positioning accuracy:0.001mm/Repeat positioning accuracy:0.0005mm |
| Turntable accuracy | Positioning accuracy:2 arc sec/Repear positioning accuracy:0.5 arc sec |
| Maximum tool weight | 35KG |
| Maximum tool diameter and length | Diameter:300mm/Length:600mm |
| Machine Dimensions | length:2290mm/width:2206mm/height:2465mm |
| Machine Weight | 6T |
| Tool installation interface | HSK A63 interface/Optional pneumatic chuck |
