Vitrified diamond grinding wheels for PCD & PCBN tool

Vitrified diamond cup wheels are used for grinding and regrinding pcd, pcbn, mcd, carbide and ceramic cutting tools. MoreSuperHard devotes to offer an efficiency and economic solution in PCD and CBN cutting tools grinding. We can supply quality PCD grinding wheel at very long life as well as fast cutting. We only choose the very strong synthetic diamond as the raw materials, make sure not only the particle shape is round enough but also be with some sharp points, which can make sure we won't lose the efficiency while we still want enough life from the wheels. So it will help you get fast, stable, much more PCD tools in unit time.

pcd grinding

Applications of vitrified diamond wheels for PCD and PCBN tools

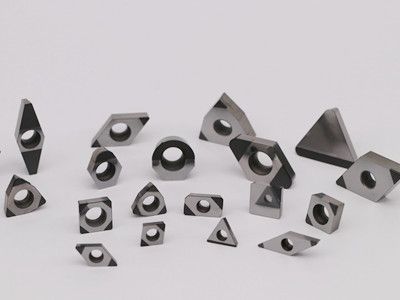

pcd cbn cutting tools

Vitrified bond diamond grinding wheels can be used for grinding PCD PCBN cutting tools, CVD tools, MCD tools, carbide, ceramic cutter, milling cutter, reamer, drill and regrinding, etc.

- PCD (Polycrystalline diamond)

Polycrystalline Diamond is diamond grit that has been fused together under high-pressure, high-temperature conditions in the presence of a catalytic metal. The extreme hardness, wear resistance, and thermal conductivity of diamond make it an ideal material for the cutting tools manufacturing.

- PCBN (Polycrystalline cubic boron nitride)

PCBN is simply an acronym for polycrystalline cubic boron nitride which is used in manufacturing high power and intensity tools. This material is created by binding CBN (cubic boron nitride) particles with specific binders that boost strength and resistance to wear.

- MCD (Mono crystalline diamond)

Mono crystalline diamond (MCD) is also called as synthetic single crystal diamond (SCD). It is synthetic diamonds produced by high pressure high -temperature synthesis under tightly controlled growth conditions.

PCD Grinding Machine: Coborn, Ewag, Anca, Farman, Mytech

The Specifications of 6a2 vitrified PCD grinding wheels

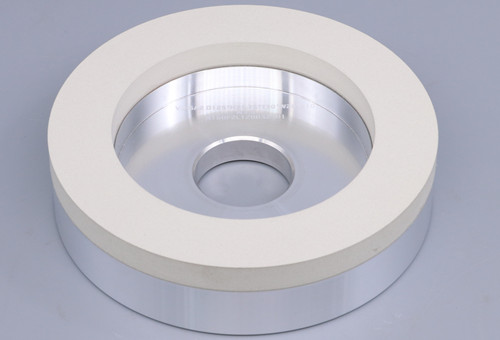

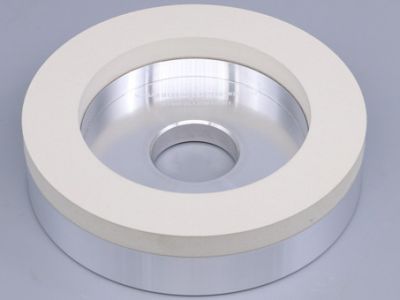

6a2 diamond grinding wheel

Model	D (mm)	T (mm)	H (mm)	W (mm)	X (mm)
6A2	100	40	32, 40	3, 4, 5, 10, 15, 20	10
	125	40	32, 40	3, 4, 5, 10, 15, 20	10
	150	40	32, 40	1, 2, 3, 5, 10, 15, 20	10
Grit: 325/400, W40 (500#), W28 (600#), W20 (800#), W10 (1500#), W5 (3000#), W3 (5000#) Other size can be made according to customer's requirement. Email: pcd@moresuperhard.com

Grain Size	Machining Type	Application
W40(500# D35) W28(D20)	Rough	Regrinding a blade edge profile and sharpening of much worn inserts
W20 (800# -1000#, D20)	Universal	Standard grain size also can get a high sharpening efficiency, good quality surfaces
W10 (1500# D15A) W7 (2000# D15B)	Finish	Finishing grinding - getting a very good quality of machined surfaces
W5 (3000# D7) W3.5 (4000# D3)	Super Finish	Super finish grinding - getting a brilliant quality of machined surfaces
W1.5(10000# D1)	Ultra Finish	Better surface finish, avoid edge collapse

New Products - "533" "053" Vitrified Diamond Wheel

"533" is ultra-precision grinding wheel with particle size of 3μm, "053" is ultra-precision grinding wheel with particle size of 1μm. It can achieve very high surface finish, good self-sharpening and high grinding efficiency. Specially used for ultra-high precision PCD/PCBN tool grinding.

MoreSuperHard specially developed ultra-narrow vitrified diamond grinding wheel with 1 mm width, to meet the needs of customers for ultra-small size PCD, PCBN tools grinding.

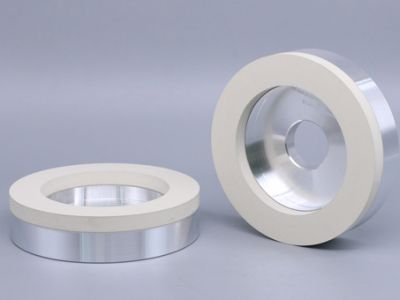

pcd grinding wheel

Dressing of vitrified diamond grinding wheel for PCD and PCBN tools

In order to improve the efficiency of grinding wheels, MoreSuperHard independently developed a vitrified diamond dressing wheel specially used for dressing vitrified diamond grinding wheels for PCD tools. At present, it has been put into production and supplied to the market.

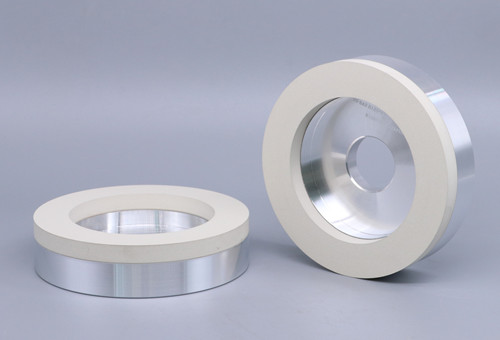

diamond dressing wheel

The Cases of Vitrified Diamond Wheel for PCD Grinding

Model	6A2
Specification	D125H31.75T40W15X10
Grit size	W5, W10
Application	PCD cutting tools
Customer's feedback	We had a chance to run the vitrified diamond wheels we bought from you and we like them! They are doing better than what we were using and I like to thank you very much!

Model	6A2
Specification	D150H40T40W2X10
Grit size	W1.5, W3.5
Application	PCD cutting tools
Customer’s feedback	We get the wheel already. Last week we test wheel type 6A2. Your product test ok.

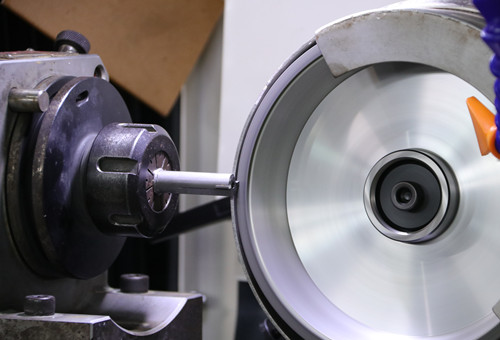

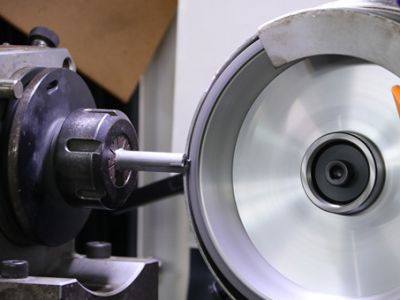

pcd grinding

Specifications of vitrified diamond grinding wheel for testing

Grinding wheel model: 6A2

Grinding wheel outer diameter: 150mm

Grinding wheel inner hole diameter: 40mm

Grinding wheel ring width: 15mm

Grinding wheel size: 10000#

PCD Tool Grinding Parameter Settings

Blade grade: CMX850

Grinding edge length: 10.5mm

Grinding amount: 0.005mm-0.01mm

Edge chipping depth requirement: ≤0.003mm

Test grinding results After grinding with Moresuperhard 10000# vitrified diamond grinding wheel, PCD tool chipping is controlled between 0.003mm-0.004mm, which fully meets the precision grinding requirements of customers.

Advantages of vitrified diamond wheels for PCD and PCBN tools

- The porous structure of the abrasive improved diamond exposure and can prevent vertical streaks on workpiece and improve surface quality.

- Accurately control geometric tolerances to make a good abrasive layer.

- Good self-sharpening, high grinding efficiency, high wear resistance and less abrasive grain consumption.

- High precision workpiece. PCD tools can reach high efficiency, good surface finish and edge no chipping.

- Vitrified bond wheels offer tool life greater than 150 times that of a resin bond wheel and can be easily trued and dressed on the machine.

Q & A

1. If I have a PCD cutting tool grinder, can I grinding the cylindrical of reamer?

Recently, we met some customers who were consulting diamond grinding wheel for reamer cylindrical grinding. After inquiring some specific information, we found that these customers all had something in common -- the main reason is: the grinding machine does not match the grinding requirements. For example, the customer has a PCD tool grinding machine, and now he wants to cylindrical grinding the reamer, but there is no special cylindrical grinding machine and do not know what grinding wheel should be matched with grinder.

2. Can our grinder grind the reamer cylindrical?

Sure!

Use 198NC automatic grinding machine?

Reamer cylindrical grinding is suitable for manual processing equipment，because there are many factors affecting the cylindrical grinding.

3. How is the rotation of the cylinder realized with manual equipment?

Using variable frequency motor with adjustable speed.

variable frequency motor

4. Is the same with EWAG RS9 and 12?

Yes.

I thought it had to be an automatic grinder to grind the cylindrical, because the domestic customers usually used cylindrical grinding wheel, but we encountered less foreign. It is estimated that using the diamond cup grinding wheel to direct grinding of the cylinder. In China, most using grinding wheel with diameter 300-350mm to grinding the cylinder.

In that case, we need to purchase a new cylindrical grinding machine and more grinding wheels.

5. Domestic may be a lot of people, who manufacturing the carbide tools originally, estimate they have cylindrical grinder. In addition to the cost, do you think there are any differences in efficiency and accuracy between using a manual tool grinder and an cylindrical grinder?

Cylindrical grinding machine without constant pressure, PCD cutting tools will be broken as grinding wheel blockage. And cylindrical grinding machine cannot be measured the grinding amount by CCD, must be measured by the contact method of thousands of minutes per cent caliper, which requires experienced master operation, otherwise it will be easy to measure PCD collapse!

6. Then the formula of grinding wheel does not need to be changed, right?

6A2 vitrified diamond grinding wheels we sold may be used for grinding cylinder or grinding end face and also for grinding cylinder. Our customers give us the feedback: there is no problem uses the same grinding wheel to grind the cylinder and the edge bevel.
